Machinery Hire Servies
Facadez Offers a Machinery Hire Services

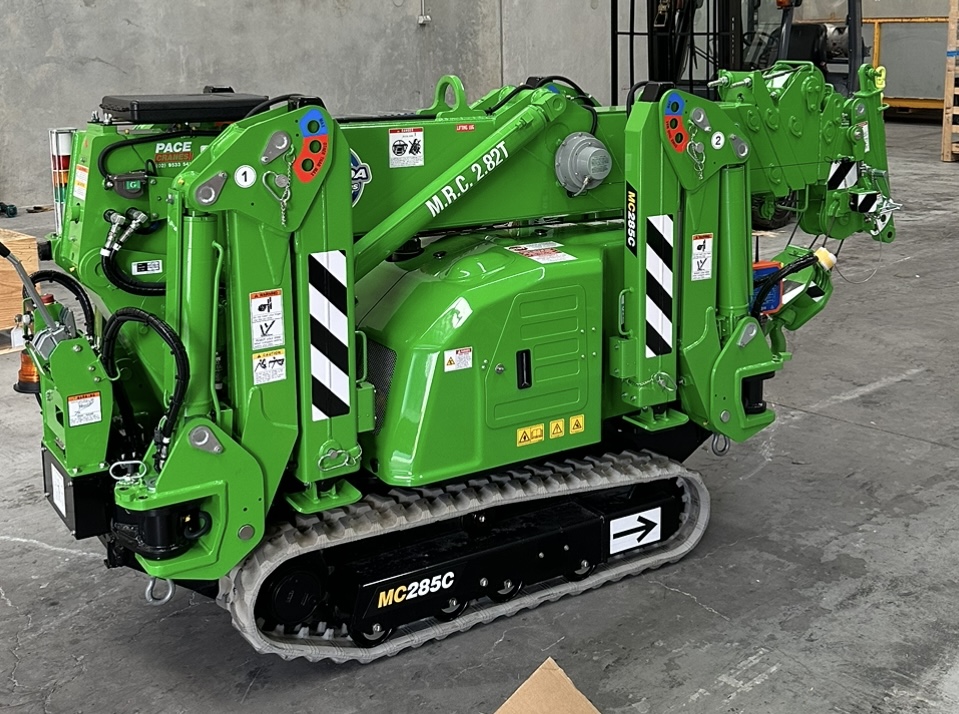

Maeda MC285CB-3 Eco Mini-Crawler Crane
Available for Wet/Dry Hire
- Compact and light weight
- Minimal environmental impact
- Multi position outrigger mode
- Wireless radio remote control
- 4 Fall / 2 Fall hook block
- Lithium – ion battery
- High-Capacity battery with long life
- Minimal charging time
- Continuous operation while charging
- 2.82T X 1.4m crane capacity
- 8.205m X 0.15t max working radius
- 8.7m max lifting height (on the ground)
- Length: 2800mm Width: 750mm Height: 1470mm

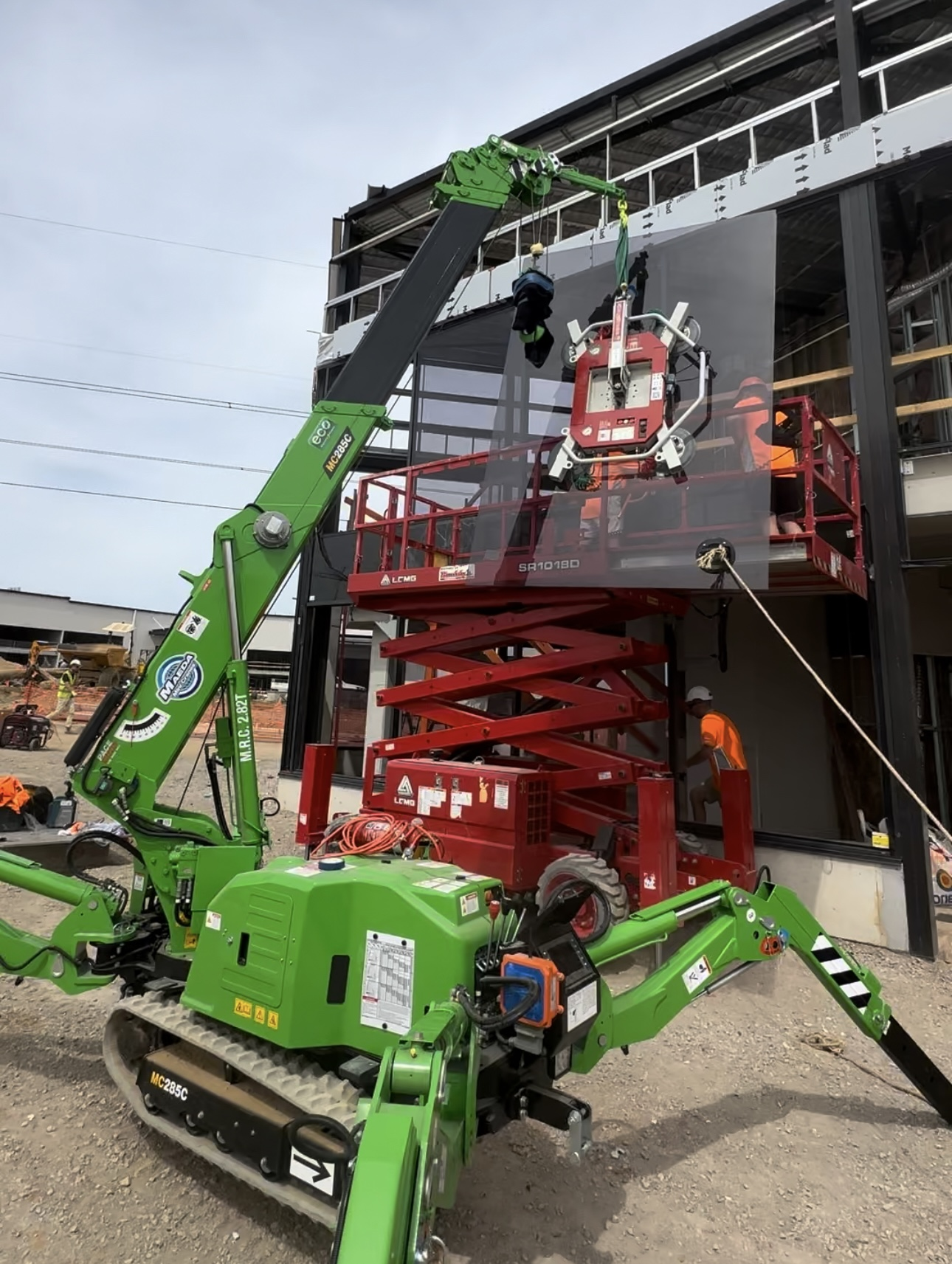

Facadez Maeda 285 spider crane is the perfect machine for curtain wall installation, glass installation and plant equipment installation works. Mini cranes are fast becoming the machine of choice for building and repair of facades across the globe.
Facadez 285 Maeda crane is a compact and light fully electric powered crane with zero emission, without compromising on performance. Features that include 9.5 hours running time on 1 charge, recharge time of 3.5 hours and continuous operation while charging makes the MC285CB-3 the perfect machine for confined space operations..
Innovative lithium-ion batteries make these models environmentally friendly, economical, efficient, and safe. Welcome to the green way of lifting. With white non marking tracks fitted the Facadez Maeda crane is the perfect choice for on site glazing works.
Contact Us

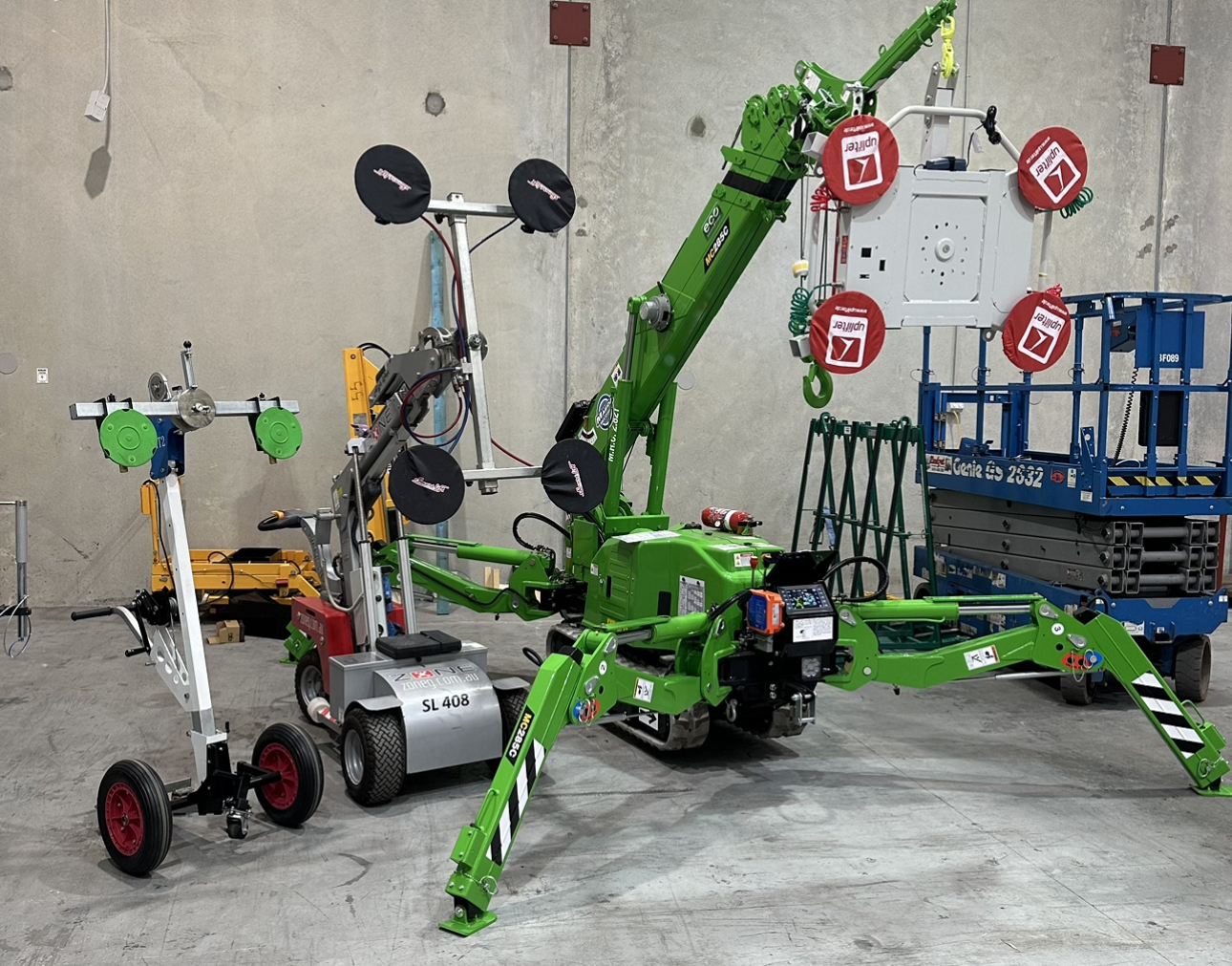

Glass Vacuum Uplifter
For easy glass/glazing elements lifting and handling with vacuum rigs
- Lifting capacity max 600kg
- 8 pcs vacuum plates
- 2 circuit-system, 2-fold secured with integrated reserve tank
- Extension arms allow the handling of even large scale elements
- Removable arm
- Suction plate with spring-loaded plunger / joint
- Manual turning by 360 degrees
- Integrated measuring devices for monitoring the vacuum and energy supply
The Facadez UPG 600-2 glass vacuum lifter is a class leader in lifting and moving glass elements weighing up to 600 kg.
Thanks to its modular design, the UPG 600-2 can be optimally adapted to the requirements on your construction site. Its extension arms also allow it to handle elements with large surface areas. The load arms can of course be removed. The attached suction discs (diameter 300 mm) provide high levels of adhesion and power on the construction site.
The UPG 600-2 begins the vacuum suction process automatically at the push of a button. The UPG 600-2 vacuum battery monitors the vacuum pressure independently and permanently after suction has begun. If the vacuum is lost, the MRT-2 re-pumps and also outputs a warning sound indicating the coming loss of vacuum pressure.
With its rechargeable battery, the UPG 600-2 is the ideal assembly partner. The replaceable 12 V battery can be recharged, and the charge status can easily be seen on the LED display. The regulated vacuum pump is continually ready for operation for up to eight hours. The vacuum lifter can be customised and adapted for any assembly situation. The vacuum battery can be rotated by 360° manually and tilted for 90°. When being rotated, the vacuum can be stopped in position every 40°. With the optional “mount extensions”, the UPG 600-2 can be adapted even better. Installation can be done without tools.
